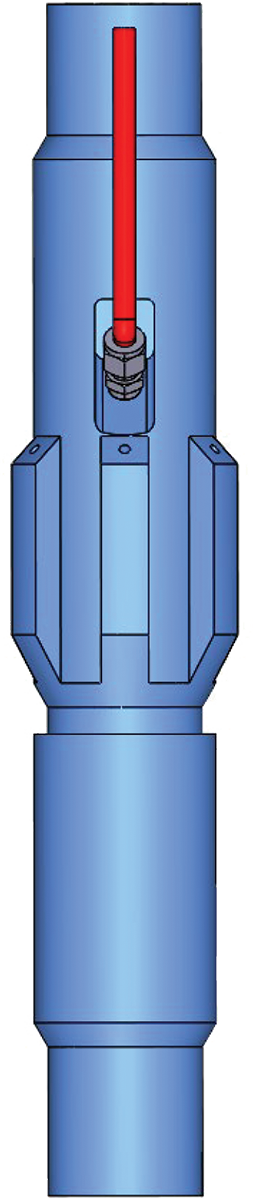

Chemical Diffuser

• 360° chemical distribution ensures uniform mixing with the production stream

• 45° nozzles minimize casing erosion from direct spray

• Injection control line protected by centralizer fins

• Injection flow rate of 3.5 GPM with 1/4" line; 7 GPM with 3/8" line

• Centralizes the ESP

• Back check valve

• Short OAL reduces assembly length

• Combine with SandMaze and SandStorm-E for comprehensive ESP protection

• A portion of proceeds from every unit sold goes to The PetroQuip Foundation

PROBLEM:

Uneven or poorly distributed chemical injection below the ESP reduces treatment effectiveness, wastes chemical, and can leave pump components inadequately protected, increasing wear and shortening run life.

SOLUTION:

PetroQuip's Chemical Diffuser injects chemicals directly below the ESP through 45° nozzles arranged for uniform 360° coverage. The controlled spray pattern ensures thorough mixing with the production stream, maximizing chemical effectiveness. The centralizer fins protect the injection control line during installation and operation, while the back check valve prevents backflow. The compact design adds minimal length to the assembly.

Combine the Chemical Diffuser with PetroQuip's ESP solutions for comprehensive protection.

• SandMaze - ESP fallback prevention

• SandStorm-E - ESP sand separation

• GasMaze - ESP flow conditioning

• Cross Collar Clamp and MLE Clamp - ESP cable protection
