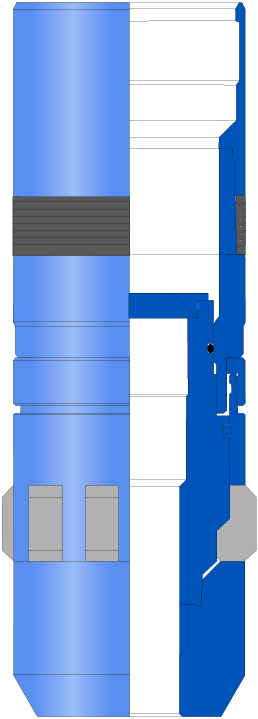

Locking Bridge Plug
The PetroQuip Locking Bridge Plug (LBP) is a selective lock designed for the high heat of geothermal wells. Utilizing PetroQuip’s high temperature chevron packing this LBP can take temperatures up to 600⁰F and pressures up to 7000 psi. The selective running tool allows as many plugs of the same size to be run in the same wellbore. The plug is designed to be retrieved only leaving the large bore profile nipples in the casing.
Benefits:
Selective running tool locates the lock and allows for unlimited plugs of the same size to be run
Can be run on tubing or e-line
Rotationally locked to allow for contingency milling if not able to retrieve
600°F Temperature rating
7000 psi pressure rating
Optional dissolvable flapper
Sets with pressure applied to the casing, not power charged setting tool
Ready to solve your toughest completion challenges?
Built for high-temperature wells and tested in the DOE's Utah FORGE program.
The Locking Bridge Plug sets with casing pressure, runs on tubing or e-line, and lets you run as many same-size plugs as the well needs. When it's time to come out, it retrieves and leaves only the large-bore profile nipples in the casing. Talk to our engineering team about your geothermal completion:
