Dissolvable Toe Sub

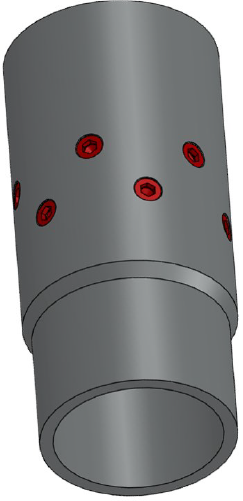

The PetroQuip Dissolvable Toe Sub features multiple dissolvable buttons designed to dissolve after a set timeframe, enabling seamless well access. Each button is coated to prevent dissolution until wellbore conditions are reached.

Installed just above the cement track, the Dissolvable Toe Sub enables pump-down operations or, when stacked, serves as the first stage of a multi-stage frac. The robust design supports standard cement jobs while maintaining a 10,000 psi burst and collapse rating. Once buttons dissolved, communication from the tubing to the cement and formation through the open flow ports.

Benefits:

• Each Dissolvable Toe Sub includes 12 customizable flow ports, which can be equipped with dissolvable buttons or steel plugs to achieve tailored limited-entry configurations.

• Ability to test the “green” cement against the Toe Subs.

• Dissolution times are adjustable based on the button coating and material, providing flexibility in well planning.

• The design accommodates any casing size.
