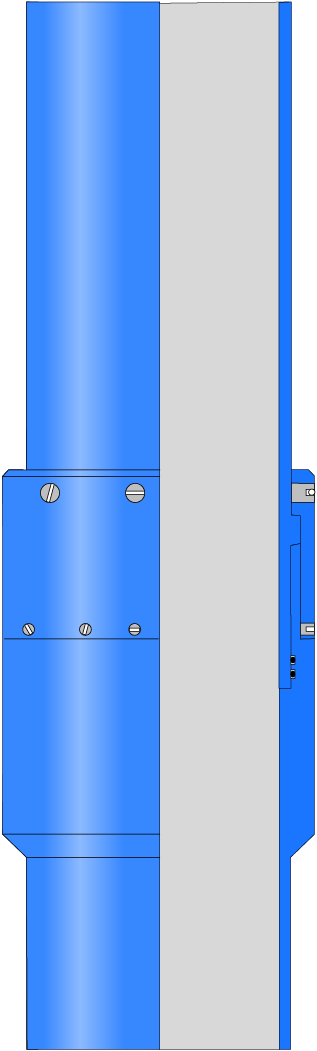

Orientation Sub

PetroQuip’s Orientation Sub allows the operator to orient the casing at 5 degree increments to align electrical or hydraulic control lines at the surface. Conventional systems require timed coupling threads for proper alignment which increases time, reliability, and cost. The Orientation Sub saves operation time and simplifies installation.

Benefits:

• Replaces the need for timed threads

• More cost effective than timed threads

• 5 degree angular adjustment

• Adjustment can be made on the rig floor just before running it downhole

• Available with premium threads

• Available in all casing sizes

• Same tensile, burst, and collapse rating as the rest of the casing string
