Shrouded APCV™

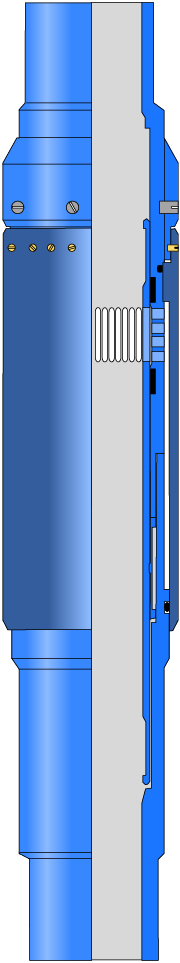

The PetroQuip Shrouded Annular Production Control Valve (APCV™) is a sliding sleeve mounted on the production tubing above the production packer for fluid displacement. The inner sleeve is run in the open position while a shroud resides over the flow ports. When ready to displace fluid, simply apply pressure to the annulus to open shroud and sleeve without intervention. After hydraulic actuation, it reverts back to a mechanical sliding sleeve with intervention via industry standard shifting tools.

Benefits:

• 10,000 and 15,000 psi pressure rating available

• 5,000 psi shifting pressure differential

• 400°F maximum temperature rating

• Proprietary seal stack

• Large flow area minimizes erosion

• Proprietary metal-metal sealing threads

• Hydraulic shifting down, followed by mechanical shifting in either the up or down position

• Upper sub has a seating nipple, allowing for the use of additional equipment
