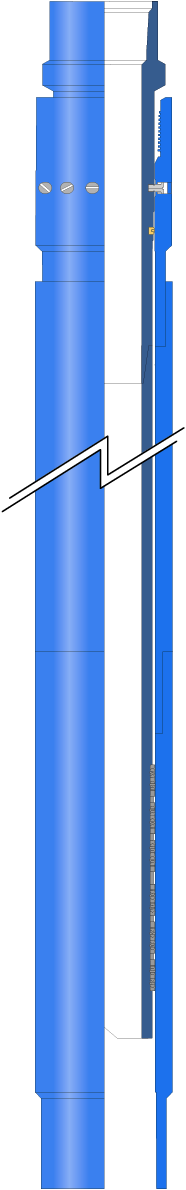

Polished Bore Receptacle and Seal Assembly

The PetroQuip Polished Bore Receptacle (PBR) and Seal Assembly is designed for use in those applications where extreme tubing movement is needed. The PBR and Seal Assembly is held in place inside the honed bore during run-in by a high strength shear screws. Setting down or pulling weight over the rating of the shear screws releases the seal assembly to “float” in the polished bore of the housing.  When combined with a hydraulic set packer the entire completion can be run in and set on the production tubing string in one trip. The debris barrier protects the lower seals from wellbore debris thus ensuring scalability.

Benefits:

• Premium threaded connections

• Used to manage tubing movement

• Single trip installation when used with a hydraulic packer

• 12,000 psi differential rating

• Different stroke lengths available from 10’ to 30’

• Seal assembly length of 36 inches

• Shear valve customizable by adding or removing shear screws in the field up to 120,000 lbs

• Different material combinations available
