Production Solutions
Production equipment that improves artificial lift system performance reducing downtime, lowering operating costs, and extending life of wells.
Production / Artificial Lift Solutions
ESP fallback prevention
ESP sand separation
SRP fallback prevention
SRP sand separation
SRP gas separation
ESP Performance Solutions
Maximize production efficiency with comprehensive ESP protection

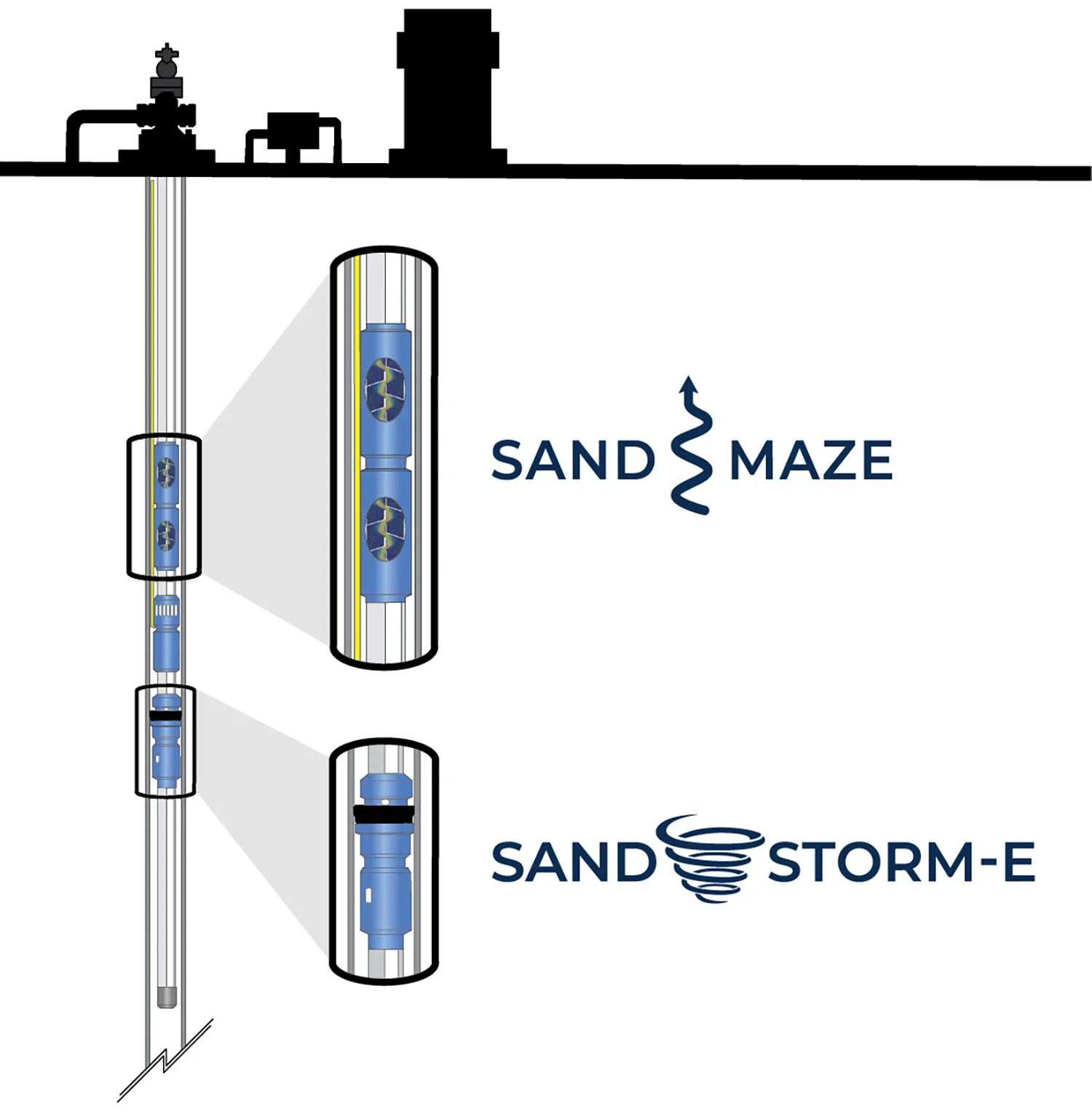

PetroQuip's integrated sand management solution combines our innovative SandMaze and SandStorm-E technologies to provide comprehensive protection for ESPs.
SandStorm-E creates a powerful vortex that separates sand and other solids from produced fluid before they reach the ESP. The fin-free design pushes debris down into a sump or tail pipe below while ensuring extended tool life.
Working in tandem, SandMaze provides critical protection during shutdown periods by capturing sand or proppant fallback in specialized holding chambers, preventing accumulation on pump stages. When production resumes, its self-cleaning feature safely reintroduces captured particles without aggressive jetting, ensuring maximum ESP protection and extended operational life.
VIDEO: Watch our animation to see how SandMaze and SandStorm-E work together to extend the life of ESPs
SRP Protection Solutions
Extend equipment life with complete sucker rod pump protection

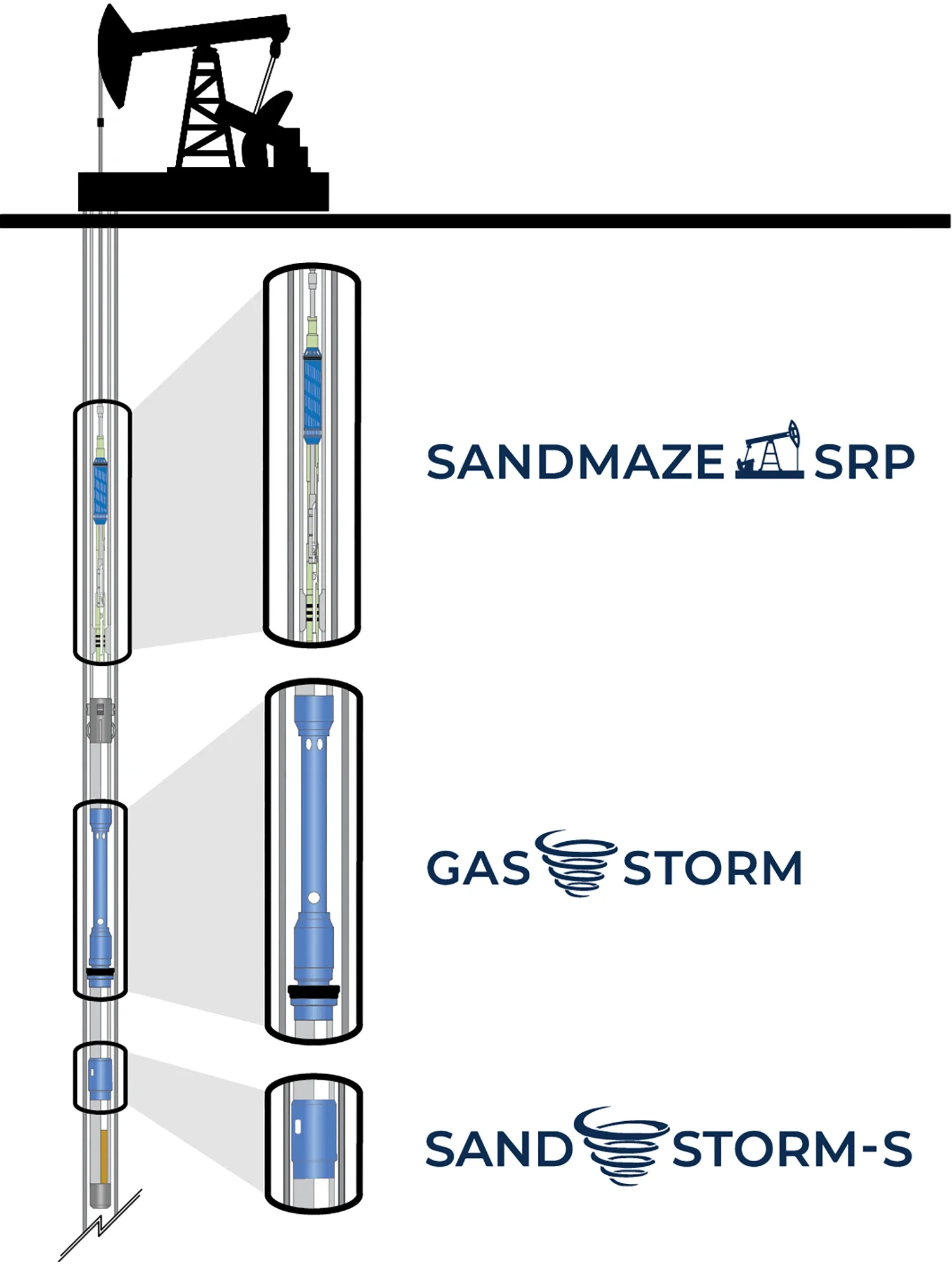

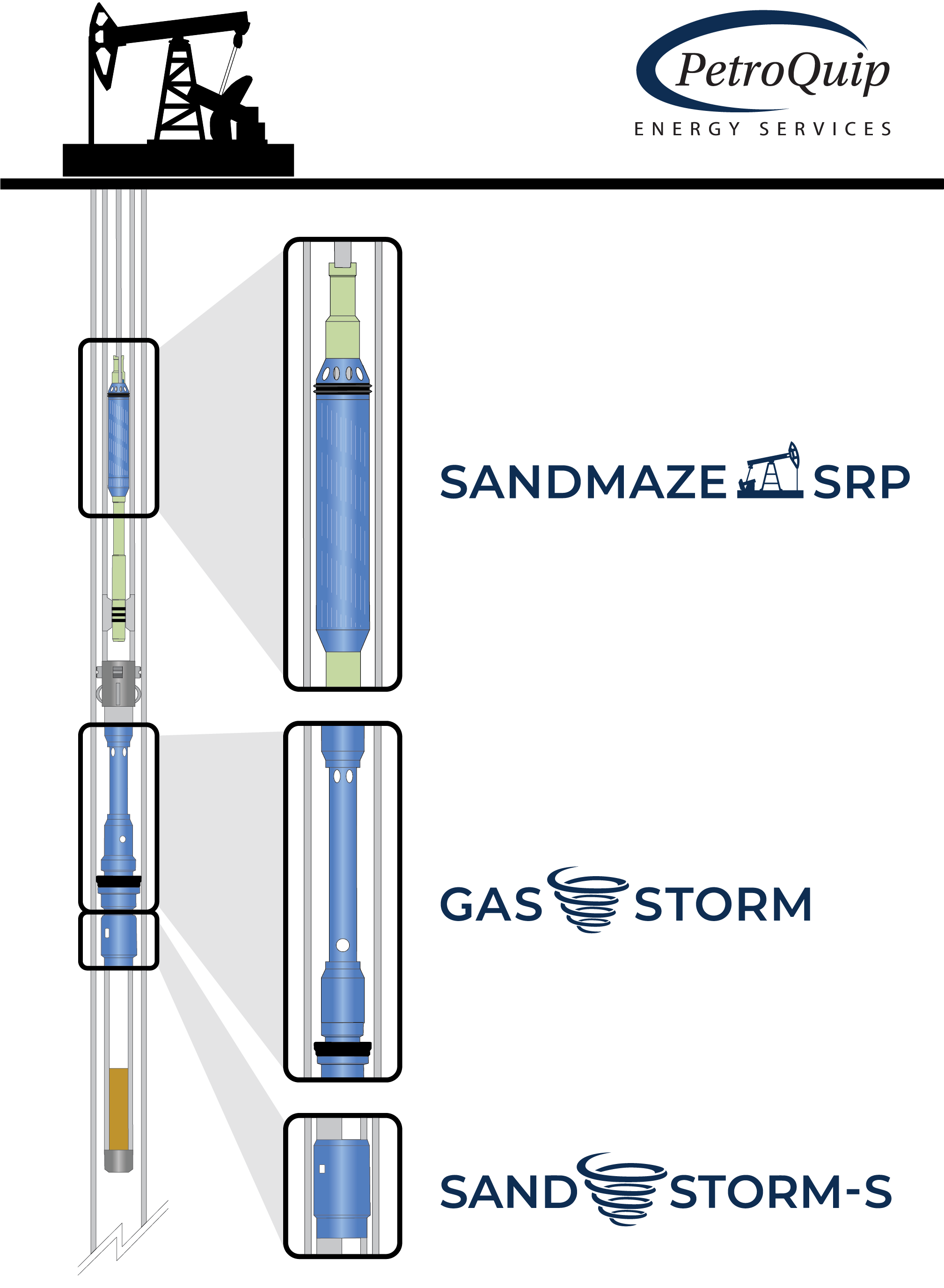

Our comprehensive SRP protection solution combines our proven SandMaze SRP, SandStorm-S, and GasStorm technologies to maximize SRP performance and reliability.
SandStorm-S removes sand and solids from produced fluid before they reach the SRP using purpose-built geometry optimized for lower flow rates. The fin-free vortex design achieves over 90% separation efficiency at 50-800 bbl/day.
SandMaze SRP prevents sand fallback during pump-off periods by capturing debris in its specialized filter system. The innovative self-cleaning capability automatically flushes captured sand during restart, protecting plunger and barrel components in only 48" OAL.
GasStorm provides reliable gas separation using the large annular area for superior efficiency. With no moving parts and a short OAL, it reduces gas interference while maintaining maximum system reliability.
VIDEO: Watch our animation to see how SandMaze SRP, SandStorm-S, and GasStorm work together to protect SRPs
Stop equipment failures before they happen.
From the Permian Basin to international operations, our custom-engineered solutions prevent costly downtime. Contact our team today to discuss how we can help solve your downhole challenges.
